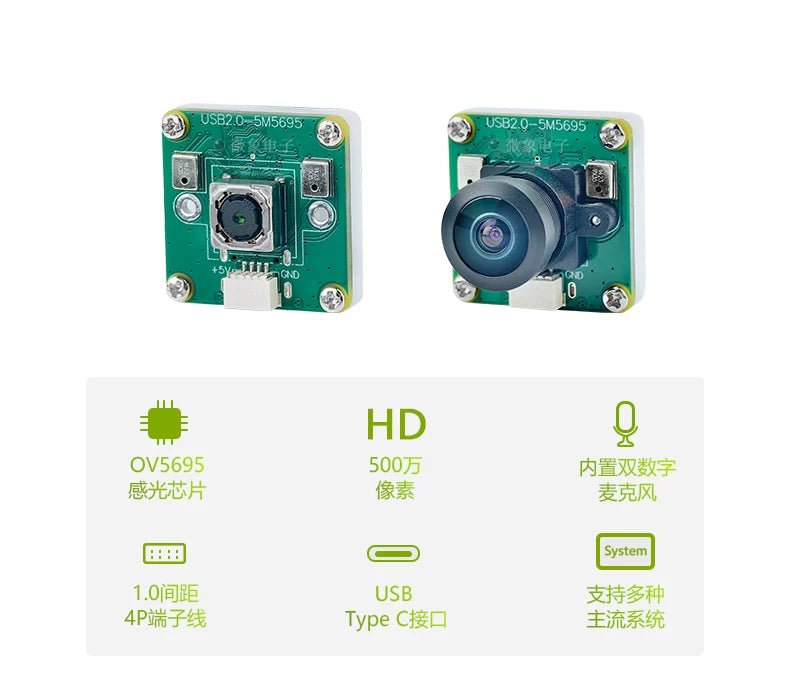

5MP HD USB Plug-and-Play Camera Module
This camera module features the OV5695 image sensor paired with a high-performance USB image processing chip. It supports the standard UVC protocol and OTG, making it truly plug-and-play — no drivers required. Compatible with Raspberry Pi and a wide range of embedded development boards, it is ideal for both industrial and consumer applications.
Key Features
- 5MP HD Resolution — OV5695 sensor with 1.4μm × 1.4μm pixel size and 1/4" CMOS
- Built-in Dual Digital Microphones — supports voice calls and video recording
- Two Lens Options — 79° AF (Auto Focus, F2.0, 2.85mm focal length) or 160° Wide Angle (Manual Focus, F2.65, 1.75mm focal length)

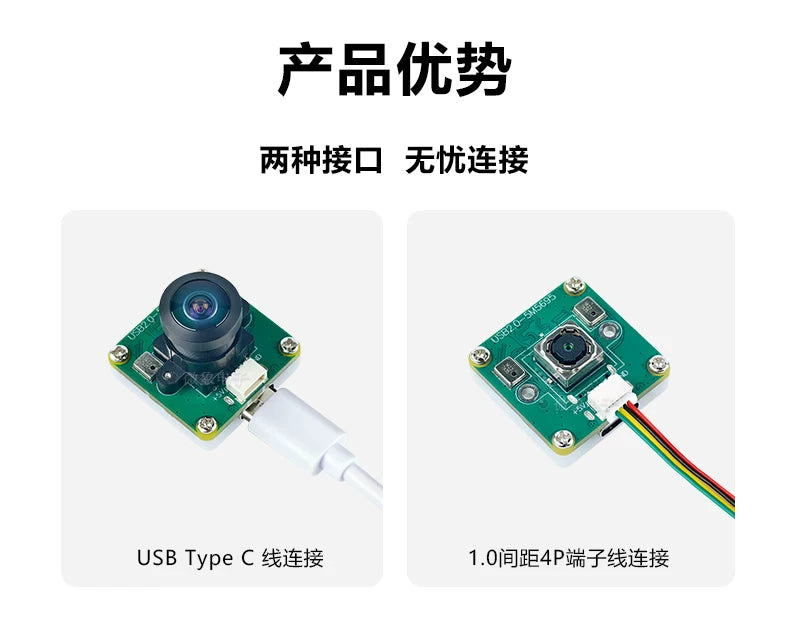

- Two Interface Options — USB Type-C universal interface, or 1.0mm pitch 4P terminal cable for industrial applications

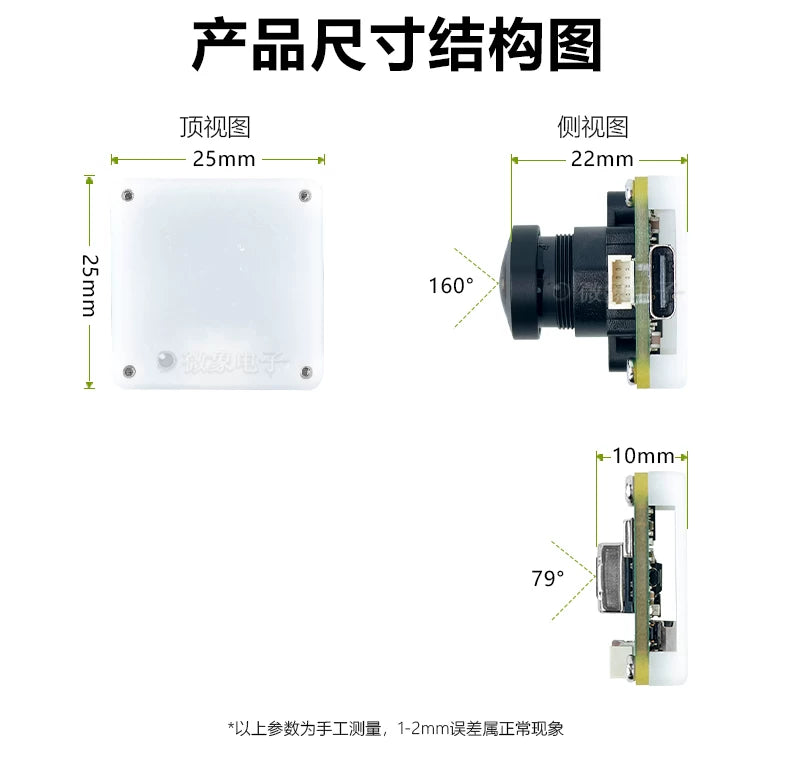

- Compact Design — 25mm × 25mm PCB, easy to integrate into small devices
- Rolling Shutter — M12 lens mount, distortion <1% (79°) / <-17.6% (160°)
- Optional 3D-Printed Housing — protects module components, enhances durability and stability
Multi-OS Compatibility
Works out of the box with Windows, macOS, Linux, Ubuntu, OpenWrt, Raspbian, Jetson, Android, and more — no driver installation needed.
Wide Application Scenarios
Suitable for robots, drones, live streaming equipment, video conferencing systems, security cameras, and other applications requiring high visual fidelity and professional optics.

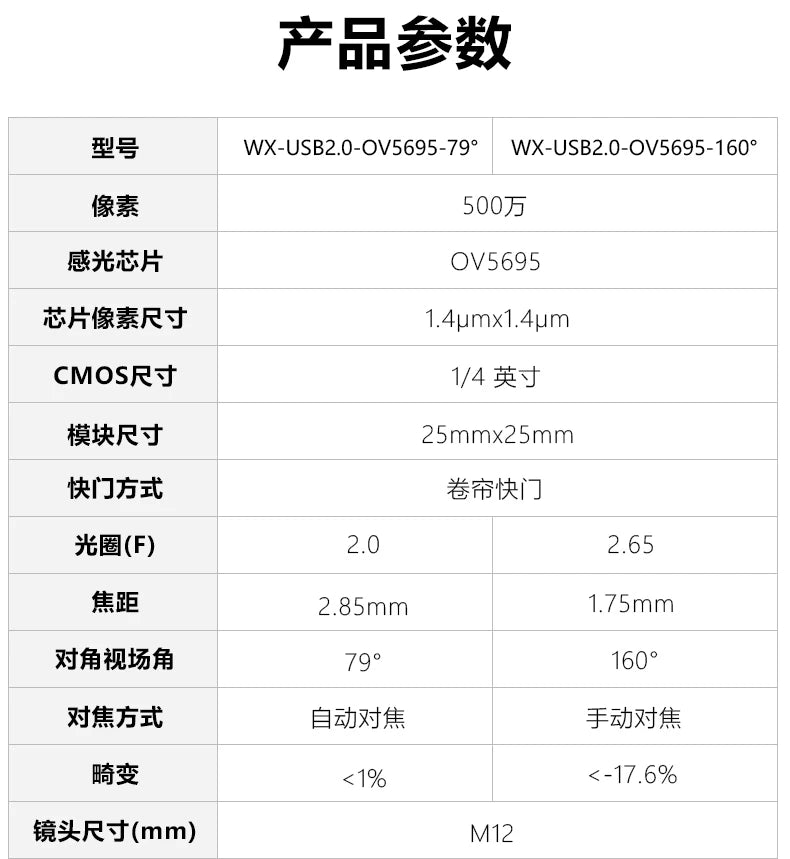

Product Specifications
| Parameter | WX-USB2.0-OV5695-79° | WX-USB2.0-OV5695-160° |
|---|---|---|
| Resolution | 5MP | |
| Image Sensor | OV5695 | |
| Pixel Size | 1.4μm × 1.4μm | |
| CMOS Size | 1/4 inch | |
| Module Size | 25mm × 25mm | |
| Shutter | Rolling Shutter | |
| Aperture (F) | 2.0 | 2.65 |
| Focal Length | 2.85mm | 1.75mm |
| Diagonal FOV | 79° | 160° |
| Focus | Auto Focus | Manual Focus |
| Distortion | <1% | <-17.6% |
| Lens Size | M12 | |

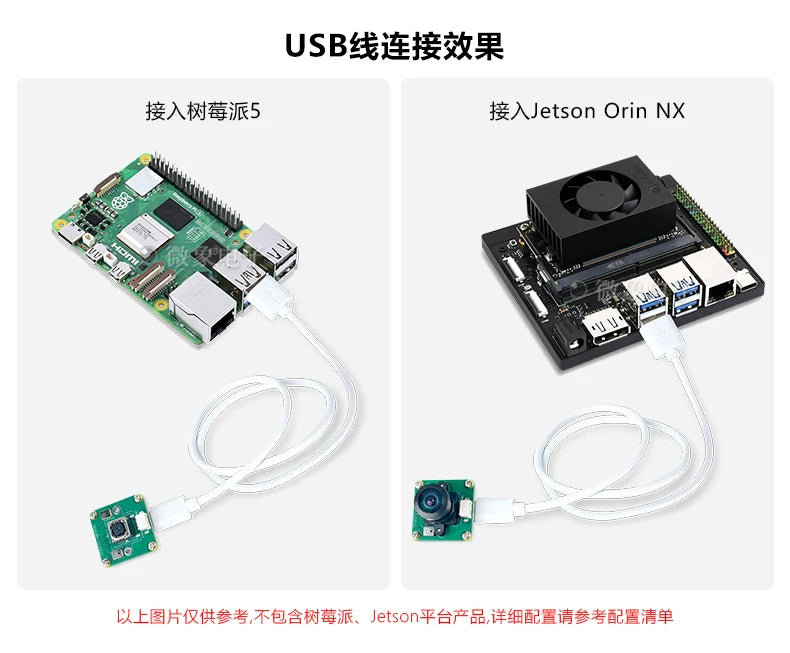

Note: All dimensions are manually measured; a 1–2mm tolerance is normal. Images shown are for reference only and do not include Raspberry Pi or Jetson platform products. Please refer to the configuration list for detailed setup.
In addition to standard models, we also offer customization services to meet specific customer requirements, further enhancing user experience and product value.
